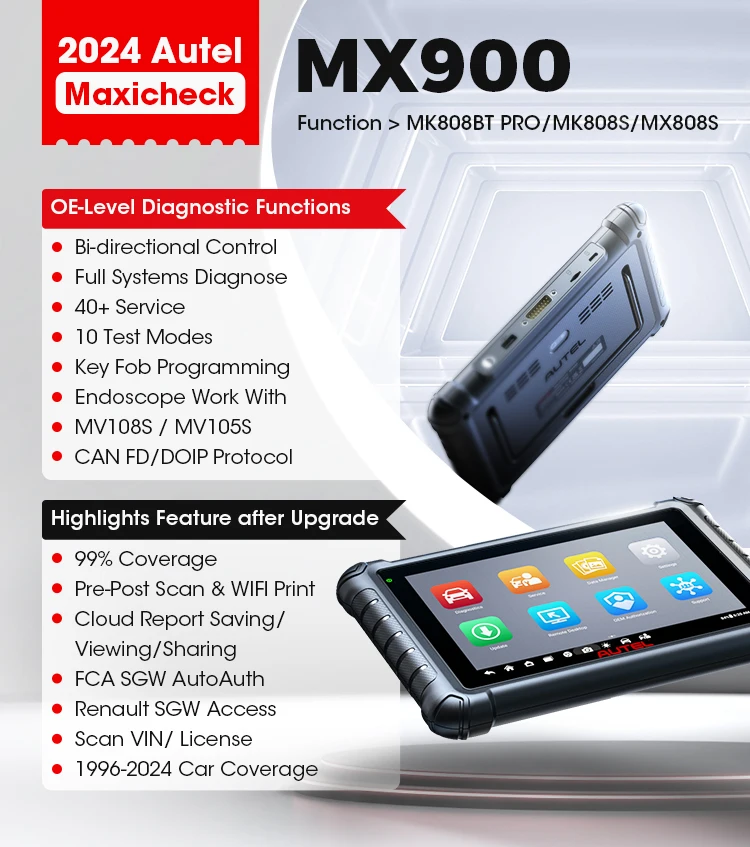

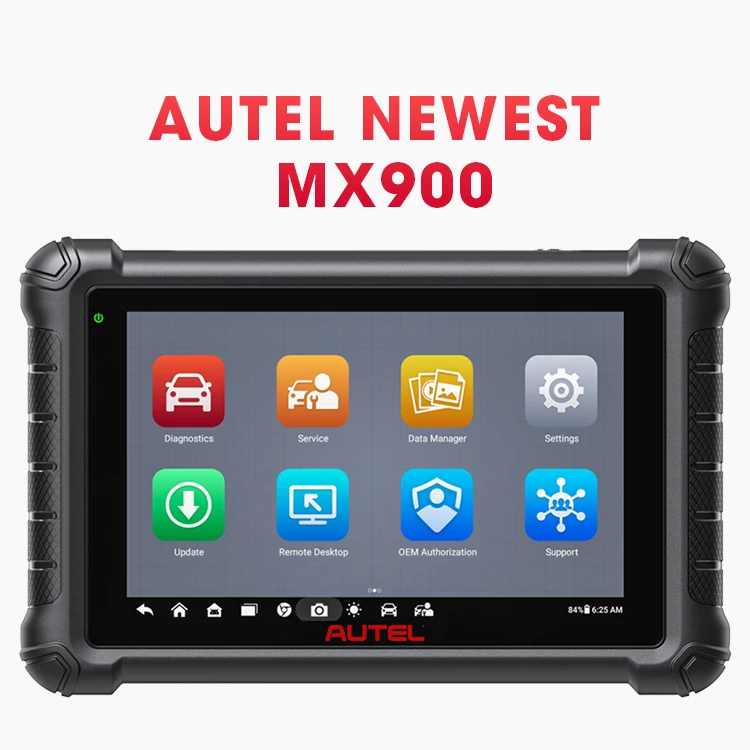

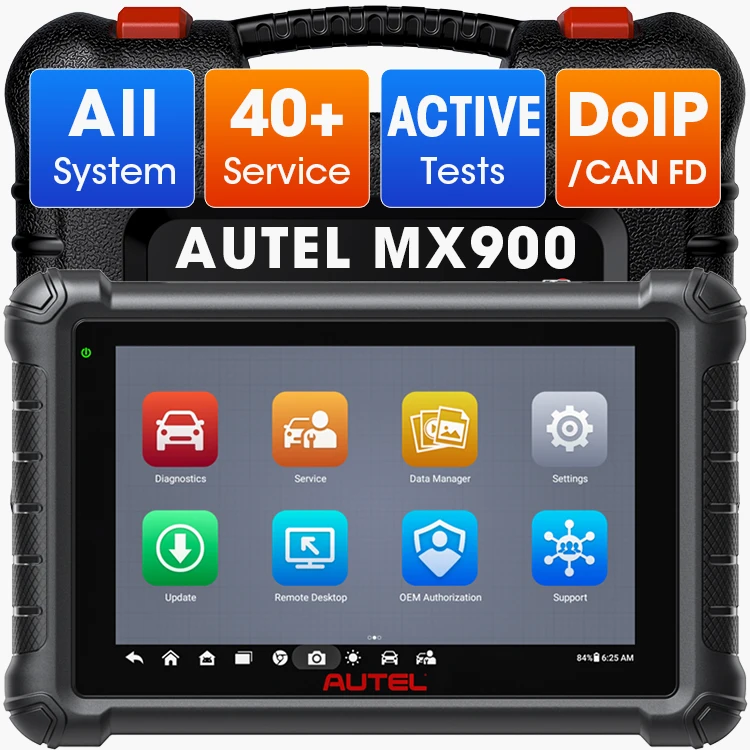

All Systems Diagnostics and Service Tablet
TheMaxiCheck MX900 is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.

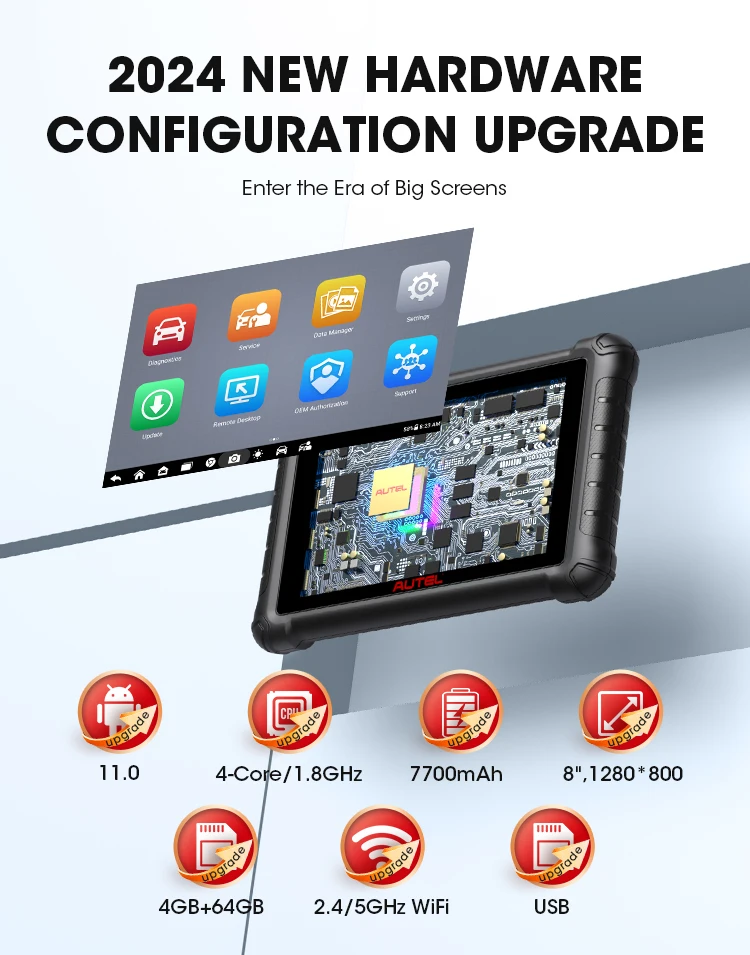

| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280x800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C |
| USB 2.0 | |
| Wi-Fi | |
| Mini SD card (supports up to 64GB) | |
| Audio Input/Output | Input: N/A |
| Output: buzzer | |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Battery Charging Input | 5V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
| MaxiCheck MX900 | MaxiDAS DS900 | MaxiCheck MX808 | MaxiCheck MX808TS | |
| Read Codes | √ | √ | √ | √ |
| Erase Codes | √ | √ | √ | √ |
| Live Data | √ | √ | √ | √ |
| ECU Information | √ | √ | √ | √ |

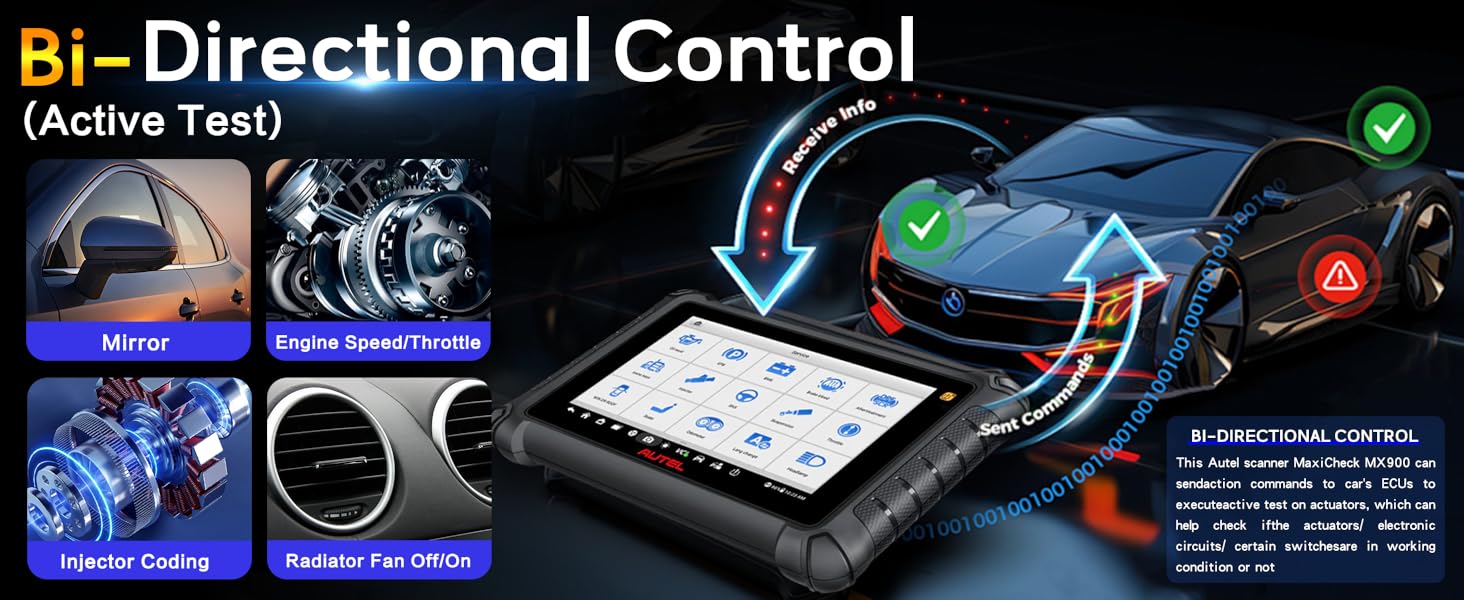

| Active Test | √ | √ | √ | √ |
| Service Functions | √ | √ | √ | √ |
| Complete OBD Diagnositcs | √ | √ | √ | √ |
| Pre & Post Scan | √ | √ | -- | -- |
| Scan VIN | √ | √ | -- | -- |
| ECU Coding | -- | √ | -- | -- |
| Guided Function | -- | √ | -- | -- |
| Tire Pressure Monitoring System | Basic | Basic | Basic | Complete |
| Advanced TPMS Diagnostics for Complete TPMS Health Check | -- | -- | -- | √ |
| Activate All Known TPMS Sensors | -- | -- | -- | √ |
| Program AUTEL MX-Sensors | -- | -- | -- | √ |
| Comprehensive OBD relearn coverage | -- | -- | -- | √ |
| On-screen Relearn Procedure | -- | -- | -- | √ |
| DoIP | √ | √ | -- | -- |
| CANFD | √ | √ | √（optional adapter） | √（optional adapter） |
| Battery Analysis | -- | -- | -- | √ |
| Videoscope | √ | √ | √ | √ |
| Processor | Quad-core 1.8GHz | Quad-core 1.8GHz | Quad-core 1.6GHz | Quad-core 1.6GHz |
| Operating System | Android 11 | Android 11 | Android 4.4.4 | Android 4.4.4 |
| Memory | 4G + 64G | 4G + 64G | 1G + 64G | 1G + 64G |
| Display | 8" LCD | 8" LCD | 7" LCD | 7" LCD |
| Battery | 7700mAh | 7700mAh | 5000mAh | 5000mAh |
| Internet Updatable | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
| Multilingual Support | √ | √ | √ | √ |
| Historical Test Records | √ | √ | √ | √ |
| Save and Playback Data | √ | √ | √ | √ |
| Wi-Fi Print | √ | √ | -- | -- |
| Vehicle communication method | Wired | Wired | Wired | Wireless (bluetooth) |
