OTOFIX D1 PROS2

OTOFIX D1 PROS Bidirectional Scan Tool, Upgrade Version Of OTOFIX D1 Lite/D1/D1 Max with New Technology

OTOFIX D1 PROS Diagnostic Scanner For All Cars, Top Cost-effective Diagnostic Tool

With advanced diagnostic functions, 100000+ car models support, affordable budget, OTOFIX D1 PROS can be the top cost-effective car diagnostic scanner among professional diagnostic tools within 1000 bucks. Powered by matured technology and fully updated CPU configuration & memory storage, this OTOFIX D1 PROS obd2 scanner diagnostic tool deeply checks every accessible vehicle system and runs 5x faster diagnostic speed than other auto scanners (via the updated V1 bluetooth connector), without slow response and lagging.

• Newly Added Functions: Upgrade your Scanner system to the latest version to get the latest cool features: 1. VIN/Od-ometer Check; 2. Read mileage and VIN values stored in various ECUs; 3. Live Data Fusion; 4. Enable the integration of live data from different systems onto a single interface, facilitating dynamic display.
• Advanced ECU Coding: Help to match the car with component control modules after replacing new ECUs. Online Coding for VW/Skoda/Peugeot/Citroen + Personalization for VW/Au-di/Skoda + Offline Coding for 25 models.
• 40+ Services: Serve for component reset/match/calibration and 99% of vehicle repair. With Oil Reset, EPB Reset, TPMS Reset, BMS Reset, Brake Bleeding, In~jector Coding, SAS Reset, Sunroof, Throttle Matching, WIN DR ROOF, Seat Reset, Aftertreatment, Lang Change, etc.
• Personalization: Customize vehicle settings and activate high-end functions to improve vehicle safety or driving experience. Such as deactivating the auto start-stop, activating auto door lo~cking/unlo~cking, disabling vehicle chimes, etc.
• VAG Guided Functions: Provide onscreen operation instruction for complex ECU coding, component matching and calibration.
• All System Diagnostics: Do full vehicle system check, read fault codes, clean DTCs, view live data, read ECU information, freeze frame, and turn off the annoying “check engine” light, etc.
• Bi-directional Control: For quick problems location, you can widely apply OTOFIX scanner para autos to vehicle doors, windows, sunroof, wipers, headlights, radiator fans, etc.
• Programmable Module Installation: Relearn data to a new module and introduce it to the car system. Compatible with Ford, Mazda, etc.
• FCA SGW Access: OTOFIX D1 PROS bluetooth OBD2 scanner provides AutoAuth access to safely visit/diagnose FCA SGW vehicles and skip Renault gateway, smoothing the whole diagnostic procedure and efficiency.
• New CANFD/DoIP Protocol: V1 VCI is compliant with CANFD (for GM models) and DoIP (for BMW/Land Rover/Benz/Volvo/GM/VW/Au-di) that automatically identifies vehicle information and accelerate data transmission. OTOFIX D1 PROS gives you a wider range of model support.
• Auto Scan 2.0: Automatically identify the vehicle and scan all systems to get accurate diagnostics in seconds once connecting VCI with the vehicle , without manually inputting the VIN, improving 5x faster efficiency. Compatible with VW, Au-di, Skoda, Seat, Mercedes-Benz, GM, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Ni-ssan, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, BMW, Mini, etc
• Cloud Report Management: All the diagnostic reports can be well-managed via a cloud server and don’t take up extra memory space. It can be shared by mail, message to customers.
• 150 Makes & 10000 Models + 2-Year No-Charge Updating

Advanced ECU Coding - Customize the Vehicle Settings

More and more vehicle repairs are involved in electric module replacement or changing codes to improve vehicle behaviors, within the vehicle system, such as the engine, transmission, brakes, and suspension. However, only expensive car scanners with coding/programming capability can solve ECU-related issues.

OTOFIX D1 PROS bidirectional scan tool within 1000 bucks comes with advanced ECU Coding functions, including online coding, personalization, programmable module installation (for Ford), etc., and performs the same repair as more high-end diagnostic scanners.

• ECU Online Coding: No need for manually input code, OTOFIX D1 PROS escaner automotriz professional can connect to the online server to automatically get/reprogram the code after replacing a new ECU module. Compatible with VW, Skoda, Peugeot, Citroen, DS, etc.
• ECU Offline Coding: OTOFIX D1 PROS car scanner helps technicians to read the code from the original modules and match/reset/relearn the newly replaced ECU modules for 25+ models, such as Subaru, Land Rover, Jaguar, Peugeot, Citroen, DS, VW, Au-di, Skoda, VW CV, Bentley, Bugatti, Lamborghini, Man LD, Seat, LT3, Opel, Vauxhall, Mitsubishi, Porsche, etc.
• Personalization/Flash Hidden Functions: Maximizing the vehicle owners’ preferences and customizing the vehicle’s pre-programmed settings as needed. This OTOFIX scan tool won’t change the software and only help to activate high-end functions or disable some unneeded functions for Au-di, VW, Skoda models. Such as deactivating the auto start/stop, mirrors automatic folding and unfolding, activating daytime running lights, etc.

NOTE: ECU Coding is NOT universally compatible with all vehicles, and varies by make, model, and year. Please confirm with us before purchasing.

40+ Maintenance Functions, Broader Coverage & Faster Updating

OTOFIX D1 PROS is a professional diagnostic tool for almost 99% of vehicle models, including passenger cars, SUVs, Sedans, and Pickups, which supports 40+ maintenance functions for all common repair needs. The vehicle model coverage (from 1996-new) and diagnostic accuracy have gone far beyond other brand auto scanners. The high-frequency updating also leads you to act high-speed diagnostic way and get the new software data.

• Oil Reset: Reset the oil life system and turn off the oil light to start a new cycle.
• EPB Reset: Reset the calipers, brake discs or pads after replacing the electronic parking brake system.
• TPMS Reset: Reset the tire pressure system and turn off the MIL light.
• BMS Reset: Re-match the battery control module and motoring sensor.
• ABS B-leeding: Help empty the air after changing the brake pad, brake pad sensor, brake pump, ABS pump, etc.
• I~njector Coding: Code the in~jector after replacing or adjusting it to correct the fu~el injection volume of each cylinder more accurately.
• Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
• Sunroof Reset: Reset sunroof lo~cking & closing, closing on rainy days, slide/tilt sunroof memory function, outside temperature threshold, etc.
• Throttle Matching: Initialize the throttle actuators to the default situation.
• Windows Calibration: Perform door window matching to recover ECU original mode.
• Seat Calibration: Calibrate the memory in replaced or repaired seats.
• Lang Change: Change the instrument displaying language.
• Headlamp: Initialize the adaptive headlamp system.
• Speed & PTO: Set the vehicle’s highest speed and power.
• Clutch Reset, Trans Adaptation, Airbag Reset, VIN, FRM Reset, Transport Mode, Rain/Light Sensor, ABS, SRS, Cylinder, VGT Learn, A/F Setting, Automatic Start/Stop, Electronic Water Pump Start, HV Battery, ACC, AC...

Note: Available functions vary by model, make, year, etc. You can check the compatibility by messaging us.

New Technology, New Features Diagnoses Your Car In A Few Minutes

All System Diagnostics

• OTOFIX D1 PROS, a new generation of full system diagnostic scanner, provides reading codes, viewing live data, checking ECU version information, clearing faulty codes, etc., which can not check Engine, Transmission, ABS, SRS, Throttle, TPMS, Battery, but also detect all parts of the vehicle ECU. Other diagnostic tools only work on the specific brand vehicle. OTOFIX D1 PROS can serve VW, Au-di, Skoda, Renault, Hyundai, Volvo, Ford, Benz, etc.

Bi-directional Control

• OTOFIX D1 PROS is a bi-directional scan tool featuring various active tests that can send commands to check vehicle system is in good condition or not. Bi-directional control brings you an effective diagnostics to locate vehicle problems within 10 minutes. It can work on most ECUs such as windows, doors, wipers, headlamps, rear lights, actuators, pumps, valves etc., and operate compression test, door lo~cking test, sound horn test, etc., saving you more time and cost.

VAG Guided Functions

• Designed for VAG vehicles (for Au-di, VW, Skoda, Seat, Porsche, etc), guided functions can skip over the security access/channel number to reduce the vehicle authority limitation and ease your diagnostics process. This scanner for all cars also provides OE-level tips & step-by-step instructions for reference and simplifies complicated diagnostics.

Auto Scan 2.0

• Once you upgrade the VCI to the newest version, Auto Scan 2.0 empowers OTOFIX D1 PROS car diagnostic scanner to automatically identify vehicle information, get VIN code, and quickly operate all-system full-function diagnostics with 5x faster speed, without any manual selecting & inputting. Compatible with CAN vehicles, VW, Au-di, Skoda, Seat, Mercedes-Benz, GM, Chevrolet, Chrysler, Dodge, Jeep, Honda, Acura, Hyundai, Kia, Ni-ssan, Infiniti, Toyota, Lexus, Scion, Ford, Renault, Dacia, Samsung, Peugeot, Citroen, DS, Mini, etc.

Programmable Module Installation

• Program data to a new module and introduce it to the car system. Compatible with Ford, Mazda, etc.

FCA AutoAuth Access

• OTOFIX D1 PROS obd2 scanner diagnostic tool now has access to FCA & Renault newest vehicles with SGW, it can perform diagnostics and services directly on Jeep, Fiat, Ch.rysler, Dodge, Ram after 2018 and newest Renault cars.

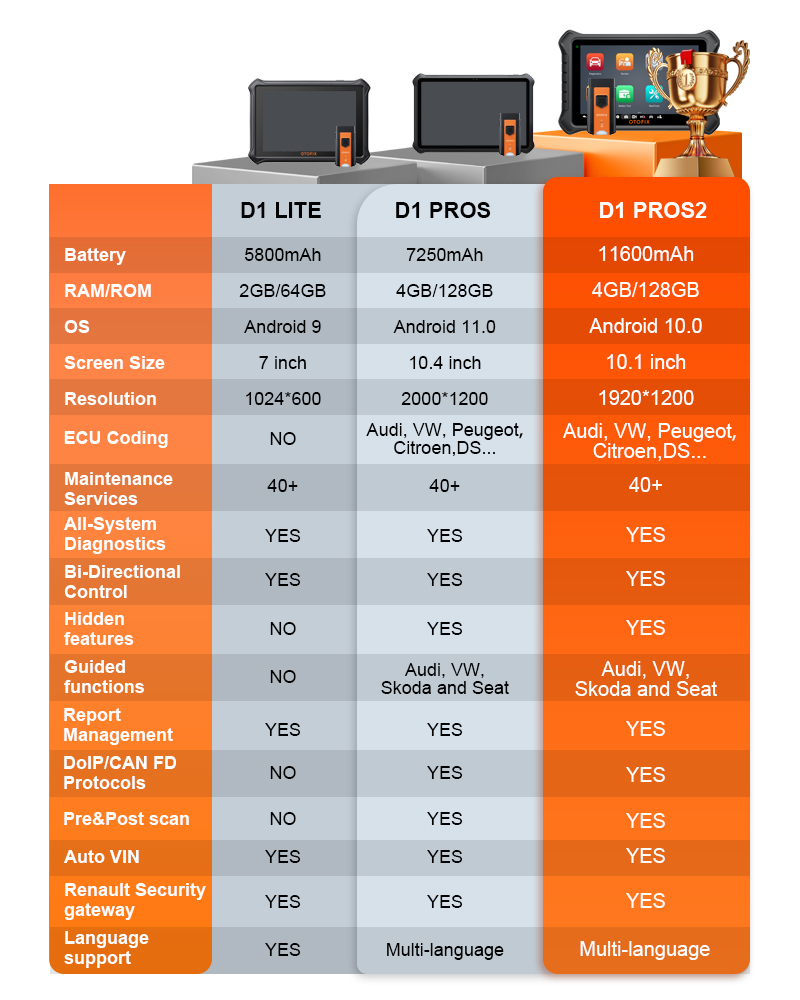

Outstanding Hardware Configuration Serves Faster Maintenance Speed

• Personalized Appearance Design: Light weight & portable size is molded to fit comfortably flexible movement in/out of the car.
• Core Processor & Android 11.0 OS: Process multi-tasks quickly and smoothly.
• HD 10.4-Inch Screen: Large touchscreen with 1920*1200 resolution offers a clearer view and smooth operation experience.
• 7250mAh Battery: One full charge works comfortably for a long-lasting use period of over 15 hours.
• Bigger 4GB+128GB Memory: Extended memory capacity (from 64GB to 128GB) allows you to save all diagnostic reports and resources without caring for narrow storage.
• BT & WiFi Connection: Establish more stable communication with the vehicles to perform diagnostics.
• V1 VCI: Featuring new Auto Scan 2.0 that runs automatic vehicle identification and 5x faster system diagnostics. Plug to communicate with vehicles, no more need for extra adapters. Compatible with BMW, Mercedes-Benz, VW, GM, Ford, Chrysler, Ni-ssan, Hyundai, KIA, Renault, PSA, etc.
• CANFD & DOIP: Compatible with DoIP & CAN FD protocols, OTOFIX D1 PROS diagnostic scan tool can run faster speed data transfer and diagnostics, which can serve more models like BMW, Land Rover, Mercedes-Benz, Volvo, VW, etc.
• Wider Vehicle Coverage: Work well on 150+ car makes and 10000+ models worldwide (from 1996 to new).
